Prefab home plans: wooden home plan Urban 183 m²
Price 77.000 euro *includes all kit and installation of it


Prefab home plans: wooden home plan Urban 183 m² Wood homes plans Urban 183 m² — Price 77.000 euro *includes all kit and installation of it
URBAN has a spacious internal open planning, guest toilet in ground floor, ground floor terrace and open roof terrace. House kit includes roof, 1st floor, external and internal walls, wooden double glazed windows, doors and stair; alsoroof covering by Icopal; insulation material by Paroc; transportation to the build site.

Two- story modern dwelling house, with 2 bedrooms and 2 bathrooms. Living space in ground floor 63,50 M2 and terrace 44,8 M2, first floor living space 75,20 M2.

Frame house Urban 183 m² — Price 77.000 euro *includes all kit and installation of it


Ground floor plan
Wood homes plans Urban 183 m² — Price 77.000 euro *includes all kit and installation of it


First floor plan
Wood homes plans Urban 183 m² — Price 77.000 euro *includes all kit and installation of it

PROJECT: URBAN
Supply set/kit of Frame Homes.
1. EXTERNAL WALLS
1.1. External cladding/ boarding 18x145 mm.
1.2. Vent.lathing 22x44 mm.
1.3. Moisture barrier 0,2 mm.
1.4. OSB 10 mm (for structure and wind barrier).
1.5. Materials for structure of house/ framing 45x195 mm.
1.6. Insulation materials 200 mm (PAROC).
1.7. Moisture barrier paper 0,1 mm.
1.8. Vent.lathing 44x44.
1.9. OSB 10 mm.
1.10. Gypsum 13 mm.
1.11. Metal parts: screws, nails, metal corners, metal plates etc.
2. INTERNAL WALLS
2.1. Gypsum 13 mm (both sides of wall).
2.2. OSB 10 mm (both sides of wall).
2.3. Materials for structure of internal walls/ framing
45x95 mm - 45x145 mm (depends of construction).
2.4. Isulation materials 100 mm (PAROC).
2.5. Metal parts: screws, metal plates, nails, metal corners etc.
3. GROUND FLOOR (on insulated concrete basis).
NO GROUND FLOOR.
4. INSERTED CEILING/ OVERLAP/ 1st FLOOR
4.1. Floorboards 28x120 mm.
4.2. OSB 22 mm.
4.3. Inserted beams/joists 90x195 mm (depends of construction necessary).
4.4. Moisture barrier paper 0,1 mm.
4.5. Vent.lathings 22x44 mm.
4.6. OSB 10 mm.
4.7. Gypsum 13 mm.
4.8. Insulation materials 200 mm (PAROC).
4.9. Metal parts: screws, metal plates, nails, metal corners etc.
5. ROOF
5.1. SBS roof covering (ICOPAL).
5.2. OSB 22 mm.
5.3. Rafters 90x195 mm.
5.4. Insulation materials 200 mm (PAROC).
5.5. Moisture barrier paper 0,1 mm.
5.6. Vent.lathing 44x44 mm.
5.7. OSB 10 mm.
5.8. Gypsum 13 mm.
5.9. Hip side and gable edge boards 21 x120 mm.
5.10. Metal parts: screws, metal plates, nails, metal corners etc.
5.11. Roof terrace boards 28x120 mm.
5.12. Roof terrace joists 45x95 mm.
5.13. Rainwater system.
6. TERRACE, VERANDAH
6.1. Terrace boards 28x120 mm.
6.2. Terrace joists 45x195 mm.
7. TRANSPORTATION
2 TRUCKS.
DELIVERY TIME: 4-6 weeks.
ASSEMBLY TIME: 4-6 weeks.
COMMENTS:
All additional materials are agreed verbally with customer or are written in delivery specification.
Windows and door styles and colors are agreed verbally with costumer or written in delivery specification.
7. WINDOWS/DOORS
7.1. Windows (German style, ROTO system).
7.2. Outer-, verandah and terrace doors (German style, ROTO system).
7.3. Inside doors (laminated glued doors, pine), massive wooden doors.
7.4. Edge boards.
7.5.Windows sills.
8. STAIRCASE or LADDER YES.
9. ASSEMBLY DRAWINGS YES.
10. PACKAGING YES.
PRICE DOES NOT INCLUDE:
• FOUNDATION
• ELECTRICITY WORKS - VENTILATION WORKS – PLUMBING
• UNLOADING MATERIALS ON SITE
• CRANE OR OTHER GREATER CONSTRUCTION EQUIPMENTS
• ACCOMONDATIONS FOR BUILDERS

TOTAL PRICE: 77 000 €

""


If you are interested in prefab home plans: wooden home plan Urban 183 m² , you may:

Other produts on Prefab home plans

""

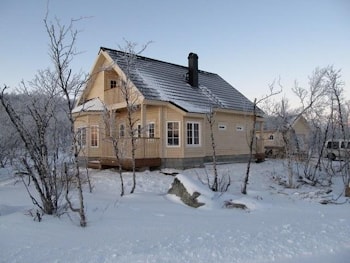

    PETER has a dining room in ground floor and internal garage. House kit includes roof, 1st floor, external and internal walls, wooden double glazed windows, doors and stair; also roof covering by Icopal, insulation material by Paroc; transportation ...
    more
    ""

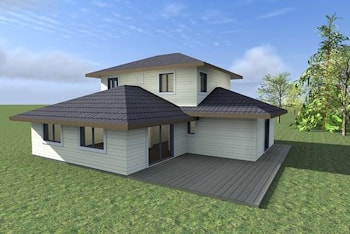

      Prefab home plans: wood homes plans Sten 144 m² Sten has two terraces in ground floor, balcony and internal sauna. House kit includes roof, 1st floor, external and internal walls, wooden double glazed windows, doors and stairs; also concrete ...
      more
      ""

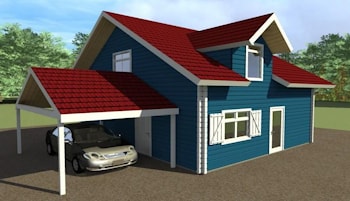

        Prefab home plans: Wood homes plans Rauno 100 m² — Price 36.872 Euro Rauno frame house The two store dwelling house with four living rooms and kitchen, with external carpot and terrace. Ground floor living space - 53m2, first floor - 47m2, carbox - ...
