Spring bolt "Strength" for the construction of wooden houses to buy at a good price 1.80 euros


Spring bolt  Strength  for the construction of wooden houses to buy at a good price 1.80 euros

Spring bolt "Strength" for the construction of wooden houses to buy at a good price 1.80 euros§

Spring bolt "Power" for the construction of wooden houses: the price of 240 mm - 1.80 euros. Tel: + 375-296-200-567

Wooden houses have long deserved popularity with their living comfort. This is an amazing atmosphere, microclimate, good heat retention, aesthetic appearance and the most important ecological cleanliness of the material. The house made of wood, as well as of other materials, is subject to natural shrinkage after installation.



After that, the building has a change in the geometry of the walls. In this case, the gaps in the joints of logs may increase, which will worsen the thermal insulation. There is also a factor such as the impact of the environment. This factor can also make its changes in the design, in the form of cracks on the log. Everything depends on the type of wood and climatic conditions of the area where the house is installed.

Spring bolt "Strength" for the construction of wooden houses to buy at a good price 1.80 euros


There are many ways to prevent the appearance of cracks on the log and increase gaps after shrinkage and during installation of the structure of wood. One such is the method with the use of the Spring Bolt "Force" for the construction of wooden houses

The design of the spring bolt "Power" for the construction of wooden houses is quite simple. In combination with a low price, it deservedly made the system very popular. The pricing of the system depends on its length and the material from which it is made, as well as the quantity purchased on the "take more - pay less" principle. The length should correspond to the diameter of the log.

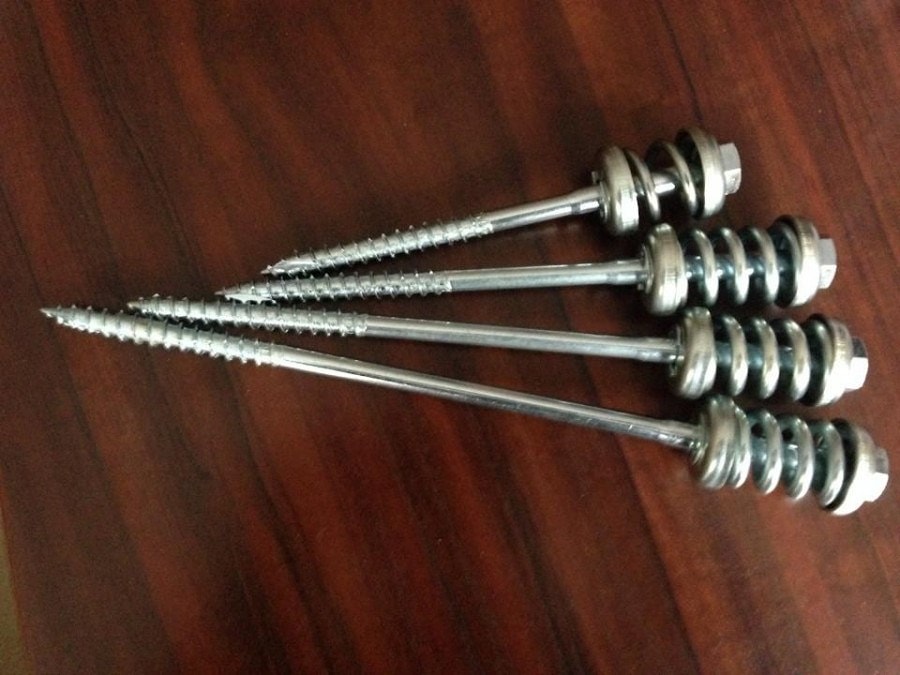

The spring bolt "Power" for the construction of wooden houses is made of high quality stainless steel or metal with an anti-corrosion coating. The unit itself consists of a long self-tapping screw with a spring and two washers. The screw has a lower part with a thread and a top with a built-in spring with washers at the ends. That's all the simple construction, but very useful in the installation and in the future when shrinking the house.

Spring bolt "Strength" for the construction of wooden houses to buy at a good price 1.80 euros


From the description of the spring bolt "Power" for the construction of wooden houses immediately understand its principle of operation. The spring mechanism is screwed to tighten the logs between each other. The spring, in turn, creates a constant pressure on the joint, so that later, when the wood will be affected by the external environment, avoid cracks, and during the shrinkage of the house, the gaps between the logs do not increase. This very simple method solves very important tasks of preserving the design of the appearance and thermal insulation. And this is not only the comfort of living, but also significant savings during the heating of the house during the winter.

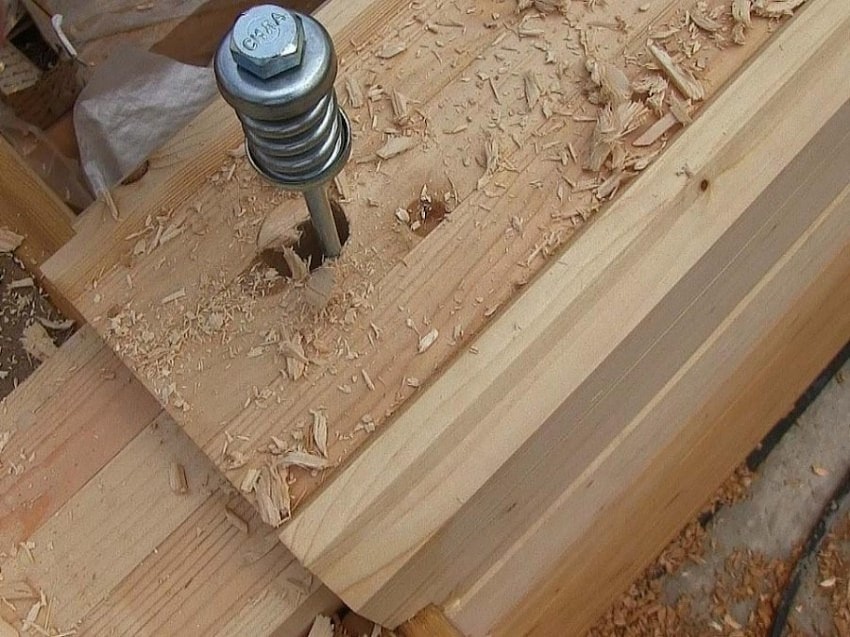

The installation of the "Force" spring bolt for the construction of wooden houses is also quite simple, but some nuances need to be considered. The knot is screwed into a pre-prepared hole. Prepare a hole correctly, to avoid tearing off the thread in the tree with a very large diameter of the hole and avoid a crack with a very narrow diameter of the hole. Therefore, the diameter of the drill for preparing the hole is selected taking into account the lower diameter of the thread of the screw.

In the upper log or beam, the hole is made through and stepped. The through hole is prepared by the diameter of the thread, and from above - by a larger diameter under the spring mechanism. The diameter of the opening under the spring mechanism of the "Strength" node should be several millimeters larger than the diameter of the spring itself or the fixing washers of the system. To ensure that the walls of the hole do not jam the work of the spring, the depth of the spring opening must correspond to the size of the spring mechanism in the unclamped state, and that the spring system does not protrude from the log or beam, that is flush with the spring released. It is necessary that the hole is not too deep, does not go deeper than the middle of a log or beam. To do this, you need to correctly choose the length of the node "Force"

Spring bolt "Strength" for the construction of wooden houses to buy at a good price 1.80 euros


In the lower log or beam, the hole for the self-tap is prepared by the deaf, its diameter must correspond to the upper log for the thread of the screw. The depth can be up to the center of the diameter of the log or slightly deeper. At this stage the hole preparation is finished.

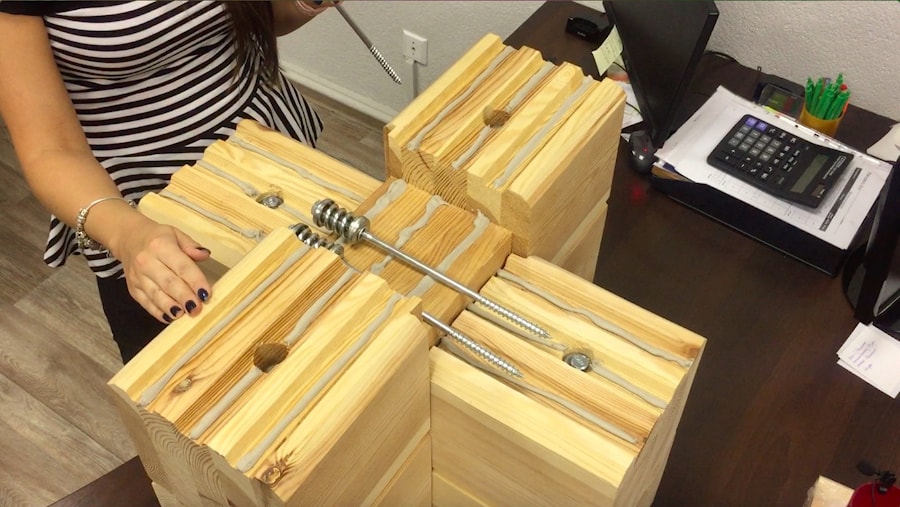

Then we twist the knot "Force", tightly drawing together a beam or log. It is necessary to tighten not only until the spring of the system is completely compressed, but also until the logs or bars are pressed together tightly together. The special gasket between the logs must be tightly pressed, and of course, no large gaps. Subsequent logs or beams are stacked and clamped in the same way, only with the center of the hole for the spring unit "Force", staggered, thereby distributing the load on the tree.

The advantage of the "Force" spring bolt for the construction of wooden houses is a simple design, low price and reliability.

Spring bolt "Strength" for the construction of wooden houses to buy at a good price 1.80 euros

Experts know that after installing a wooden house, they let him settle. During this time, the remaining moisture from the wood should leave, and the house sits down during this time. Typically, in time it takes about a year for a building of logs and a little less time - for a house of timber. Only after that they are engaged in finishing works with further settling. But if the spring bolt "Power" is used for the construction of wooden houses, the time for shrinkage is significantly reduced.

For the construction of logs quite a few months, and for the house of glued beams even less. Of course, you need to take into account the time of year and the climatic region of construction. But in general, it significantly shortens the time until the long-expected housewarming.

The spring bolt "Power" for the construction of wooden houses retains good thermal insulation and the appearance of the building.

Why use a spring bolt "Force" for the construction of wooden houses when assembling a wooden house?

It has long been habitual to build a house on nageli. But, over time, the shortcomings of this method are revealed, in which the house remains in a 'floating' state. Wooden walls are not sealed, they lose durability and thermal insulation.

What is the "Force" spring bolt for building wooden houses?

To solve this problem, the "Force" node was created, which is a fastener capable of fixing all the wooden parts from any kind of log or timber. In the construction of the fasteners there is a screw that eliminates the gaps and presses all the structural elements to each other.

The spring unit "Force" is equipped with a special compression mechanism, which is "responsible" for a strong connection of the rims, which makes the wooden structure airtight. Washers are used for fixing.

What does the use of the spring bolt "Power" for the construction of wooden houses?

Spring bolt "Power" for the construction of wooden houses - easy assembly of parts;

Knot "Force" - forced shrinkage of the frame;

Knot "Force" - resists cracks and gaps for the entire lifetime of the house;

The spring bolt "Force" for the construction of wooden houses - the four nodes of the Force, provides a strong load on the structural elements, which allows you to attract the parts to each other.

The results of applying the node Force.

Spring bolt "Strength" for the construction of wooden houses - shrinkage occurs in a short time there are no displacements, curvatures,

Node "Force" - the material does not crack,

Spring bolt "Strength" for the construction of wooden houses, provides waterproofing of the sealant in the best condition.

The use of the "Force" node when assembling a wooden house, fully justifies the money spent on its acquisition.

The economic efficiency of the use of this technology is obvious - none of the known technological processes has the ability to eliminate the effects of moisture shrinkage.







If you are interested in spring bolt "Strength" for the construction of wooden houses to buy at a good price 1.80 euros, you may:
